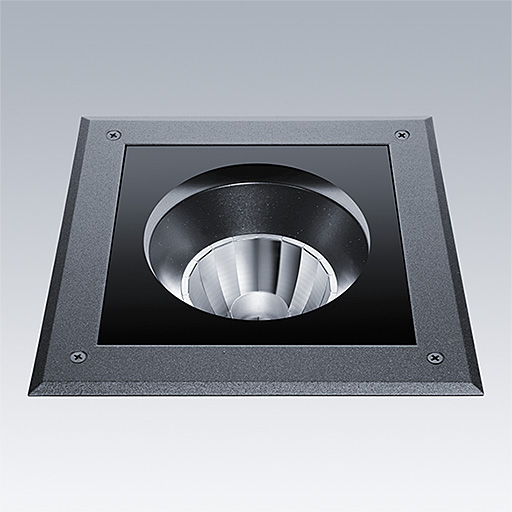

Axyl Opera

  • Axyl Opera

Axyl Opera is a walk over in-ground luminaire perfect for urban areas, residential projects and public parks

  • Bodeneinbauleuchte in fünf Standardfarben (Edelstahl, grau, anthrazit, schwarz, weiß) und vier Größen (Small bis Extra Large)
  • Multiple light distributions available: wide diffused effect, narrow beam, medium beam, assymetric beam
  • Tilt +/- 15° for Narrow - Medium Beam
  • Tilt +/- 5° for Assymetric Beam
  • Erhältlich in 2700K, 3000K, 4000K und CRI90. RGBW ist erhältlich in den Größen Large und Extra Large
  • Axyl Opera ist erhältlich in den Konnektivitätsvarianten Nicht-dimmbar oder DALI2 (Option mit externem Treiber für die Größen Small und Medium). RGBW nur erhältlich mit Remote DMX Driver
  • Last = 1050kg bei L und XL
  • Last = 510kg bei S und M

Material/Ausfertigung

Die-cast aluminium housing.
Front bezel in stainless steel A4 or aluminium.
Clear toughened glass.
Silicone gaskets.
Stainless steel A4 screws.
Double Powder paint process.
Polypropylene recess box.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Installation/Montage

Suitable for in-ground mounting with recessed box included.
Maximum cable size :
-Axyl Opera S/M HF : 3 x 1mm² - 3 x 2,5mm². Pre-wired 0.5m.
-Axyl Trim S/M RD : 2 x 1mm² - 2 x 2,5mm². Pre-wired 0.5m.
-Axyl Trim L/XL HFX : 5 x 1mm² - 5 x 2,5mm². Pre-wired 0.2m.
Remote DALI-2 driver to be ordered separately for small & medium.
Remote DMX driver to be ordered separately for RGBW.

Spezifikation

To specify state:
Square recessed luminaire in a pedestrian version, compatible with the pedestrian walkway on the luminaire. Available in several sizes (S, M, L and XL) and five standard colours (grey, anthracite, black, white and stainless steel). Recessed box for installation is supplied with the luminaire. Several light distributions are available: narrow, wide, medium (L and XL only), asymmetrical (L and XL only). The optical module can be tilted (except for the wide beam).
Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential or public applications. An RGBW version is also available on sizes L and XL to create colour changing scenarios for events.
Non-dimmable driver integrated on S and M versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Integrated DALI2 driver on L and XL versions (except RGBW).
Robustness: IP67 & IK09.
As Thorn Axyl Opera

Neues Produkt
LumExpress Produkt
eControl Produkt

▼ Axyl Opera, small size narrow beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA S WO 1L 927 NB HF ANT4160LED0.7796700745
AXYL OPERA S WO 1L 927 NB HF BK4160LED0.7796700743
AXYL OPERA S WO 1L 927 NB HF GY4160LED0.7796700744
AXYL OPERA S WO 1L 927 NB HF SS4160LED0.8396701119
AXYL OPERA S WO 1L 927 NB HF WH4160LED0.7796700742
AXYL OPERA S WO 1L 927 NB RD ANT4160LED0.7796701707
AXYL OPERA S WO 1L 927 NB RD BK4160LED0.7796701705
AXYL OPERA S WO 1L 927 NB RD GY4160LED0.7796701706
AXYL OPERA S WO 1L 927 NB RD SS4160LED0.8396701851
AXYL OPERA S WO 1L 927 NB RD WH4160LED0.7796701704
AXYL OPERA S WO 1L 930 NB HF ANT4170LED0.7796700753
AXYL OPERA S WO 1L 930 NB HF BK4170LED0.7796700751
AXYL OPERA S WO 1L 930 NB HF GY4170LED0.7796700752
AXYL OPERA S WO 1L 930 NB HF SS4170LED0.8296701121
AXYL OPERA S WO 1L 930 NB HF WH4170LED0.7796700750
AXYL OPERA S WO 1L 930 NB RD ANT4170LED0.7796701715
AXYL OPERA S WO 1L 930 NB RD BK4170LED0.7796701713
AXYL OPERA S WO 1L 930 NB RD GY4170LED0.7796701714
AXYL OPERA S WO 1L 930 NB RD SS4170LED0.8296701853
AXYL OPERA S WO 1L 930 NB RD WH4170LED0.7796701712
AXYL OPERA S WO 1L 940 NB HF ANT4193LED0.7796700749
AXYL OPERA S WO 1L 940 NB HF BK4193LED0.7796700747
AXYL OPERA S WO 1L 940 NB HF GY4193LED0.7796700748
AXYL OPERA S WO 1L 940 NB HF SS4193LED0.8296701120
AXYL OPERA S WO 1L 940 NB HF WH4193LED0.7796700746
AXYL OPERA S WO 1L 940 NB RD ANT4193LED0.7796701711
AXYL OPERA S WO 1L 940 NB RD BK4193LED0.7796701709
AXYL OPERA S WO 1L 940 NB RD GY4193LED0.7796701710
AXYL OPERA S WO 1L 940 NB RD SS4193LED0.8296701852
AXYL OPERA S WO 1L 940 NB RD WH4193LED0.7796701708

▼ Axyl Opera, small size wide beam (frosted)

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA S WO 1L 927 WB HF ANT219LED0.6796700757
AXYL OPERA S WO 1L 927 WB HF BK219LED0.6796700755
AXYL OPERA S WO 1L 927 WB HF GY219LED0.6796700756
AXYL OPERA S WO 1L 927 WB HF SS219LED0.7396701122
AXYL OPERA S WO 1L 927 WB HF WH219LED0.6796700754
AXYL OPERA S WO 1L 927 WB RD ANT219LED0.6796701719
AXYL OPERA S WO 1L 927 WB RD BK219LED0.6796701717
AXYL OPERA S WO 1L 927 WB RD GY219LED0.6796701718
AXYL OPERA S WO 1L 927 WB RD SS219LED0.7396701854
AXYL OPERA S WO 1L 927 WB RD WH219LED0.6796701716
AXYL OPERA S WO 1L 930 WB HF ANT220LED0.6796700765
AXYL OPERA S WO 1L 930 WB HF BK220LED0.6796700763
AXYL OPERA S WO 1L 930 WB HF GY220LED0.6796700764
AXYL OPERA S WO 1L 930 WB HF SS220LED0.7396701124
AXYL OPERA S WO 1L 930 WB HF WH220LED0.6796700762
AXYL OPERA S WO 1L 930 WB RD ANT220LED0.6796701727
AXYL OPERA S WO 1L 930 WB RD BK220LED0.6796701725
AXYL OPERA S WO 1L 930 WB RD GY220LED0.6796701726
AXYL OPERA S WO 1L 930 WB RD SS220LED0.7396701856
AXYL OPERA S WO 1L 930 WB RD WH220LED0.6796701724
AXYL OPERA S WO 1L 940 WB HF ANT221LED0.6796700761
AXYL OPERA S WO 1L 940 WB HF BK221LED0.6796700759
AXYL OPERA S WO 1L 940 WB HF GY221LED0.6796700760
AXYL OPERA S WO 1L 940 WB HF SS221LED0.7396701123
AXYL OPERA S WO 1L 940 WB HF WH221LED0.6796700758
AXYL OPERA S WO 1L 940 WB RD ANT221LED0.6796701723
AXYL OPERA S WO 1L 940 WB RD BK221LED0.6796701721
AXYL OPERA S WO 1L 940 WB RD GY221LED0.6796701722
AXYL OPERA S WO 1L 940 WB RD SS221LED0.7396701855
AXYL OPERA S WO 1L 940 WB RD WH221LED0.6796701720

▼ Axyl Opera, medium size narrow beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA M WO 4L 927 NB HF ANT7449LED1.6696700817
AXYL OPERA M WO 4L 927 NB HF BK7449LED1.6696700815
AXYL OPERA M WO 4L 927 NB HF GY7449LED1.6696700816
AXYL OPERA M WO 4L 927 NB HF SS7449LED1.7496701137
AXYL OPERA M WO 4L 927 NB HF WH7449LED1.6696700814
AXYL OPERA M WO 4L 927 NB RD ANT7449LED1.6696701779
AXYL OPERA M WO 4L 927 NB RD BK7449LED1.6696701777
AXYL OPERA M WO 4L 927 NB RD GY7449LED1.6696701778
AXYL OPERA M WO 4L 927 NB RD SS7449LED1.7496701869
AXYL OPERA M WO 4L 927 NB RD WH7449LED1.6696701776
AXYL OPERA M WO 4L 930 NB HF ANT7488LED1.6696700825
AXYL OPERA M WO 4L 930 NB HF BK7488LED1.6696700823
AXYL OPERA M WO 4L 930 NB HF GY7488LED1.6696700824
AXYL OPERA M WO 4L 930 NB HF SS7488LED1.7696701139
AXYL OPERA M WO 4L 930 NB HF WH7488LED1.6696700822
AXYL OPERA M WO 4L 930 NB RD ANT7488LED1.6696701787
AXYL OPERA M WO 4L 930 NB RD BK7488LED1.6696701785
AXYL OPERA M WO 4L 930 NB RD GY7488LED1.6696701786
AXYL OPERA M WO 4L 930 NB RD SS7488LED1.7696701871
AXYL OPERA M WO 4L 930 NB RD WH7488LED1.6696701784
AXYL OPERA M WO 4L 940 NB HF ANT7498LED1.6696700821
AXYL OPERA M WO 4L 940 NB HF BK7498LED1.6696700819
AXYL OPERA M WO 4L 940 NB HF GY7498LED1.6696700820
AXYL OPERA M WO 4L 940 NB HF SS7498LED1.7396701138
AXYL OPERA M WO 4L 940 NB HF WH7498LED1.6696700818
AXYL OPERA M WO 4L 940 NB RD ANT7498LED1.6696701783
AXYL OPERA M WO 4L 940 NB RD BK7498LED1.6696701781
AXYL OPERA M WO 4L 940 NB RD GY7498LED1.6696701782
AXYL OPERA M WO 4L 940 NB RD SS7498LED1.7396701870
AXYL OPERA M WO 4L 940 NB RD WH7498LED1.6696701780

▼ Axyl Opera, medium size wide beam (frosted)

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA M WO 1L 927 WB HF ANT333LED1.6996700769
AXYL OPERA M WO 1L 927 WB HF BK333LED1.6996700767
AXYL OPERA M WO 1L 927 WB HF GY333LED1.6996700768
AXYL OPERA M WO 1L 927 WB HF WH333LED1.6996700766
AXYL OPERA M WO 1L 927 WB RD ANT333LED1.6996701731
AXYL OPERA M WO 1L 927 WB RD BK333LED1.6996701729
AXYL OPERA M WO 1L 927 WB RD GY333LED1.6996701730
AXYL OPERA M WO 1L 927 WB RD WH333LED1.6996701728
AXYL OPERA M WO 1L 930 WB HF ANT335LED1.4896700777
AXYL OPERA M WO 1L 930 WB HF BK335LED1.4896700775
AXYL OPERA M WO 1L 930 WB HF GY335LED1.4896700776
AXYL OPERA M WO 1L 930 WB HF WH335LED1.4896700774
AXYL OPERA M WO 1L 930 WB RD ANT335LED1.4896701739
AXYL OPERA M WO 1L 930 WB RD BK335LED1.4896701737
AXYL OPERA M WO 1L 930 WB RD GY335LED1.4896701738
AXYL OPERA M WO 1L 930 WB RD WH335LED1.4896701736
AXYL OPERA M WO 1L 940 WB HF ANT338LED1.4896700773
AXYL OPERA M WO 1L 940 WB HF BK338LED1.4896700771
AXYL OPERA M WO 1L 940 WB HF GY338LED1.4896700772
AXYL OPERA M WO 1L 940 WB HF WH338LED1.4896700770
AXYL OPERA M WO 1L 940 WB RD ANT338LED1.4896701735
AXYL OPERA M WO 1L 940 WB RD BK338LED1.4896701733
AXYL OPERA M WO 1L 940 WB RD GY338LED1.4896701734
AXYL OPERA M WO 1L 940 WB RD WH338LED1.4896701732
AXYL OPERA M WO 2L 927 WB HF SS333LED1.6996701125
AXYL OPERA M WO 2L 927 WB RD SS333LED1.5496701857
AXYL OPERA M WO 2L 930 WB HF SS335LED1.5496701127
AXYL OPERA M WO 2L 930 WB RD SS335LED1.5496701859
AXYL OPERA M WO 2L 940 WB HF SS338LED1.5496701126
AXYL OPERA M WO 2L 940 WB RD SS338LED1.5496701858

▼ Axyl Opera, medium size asymmetric beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA M WO 4L 927 AS HF ANT7449LED1.6496700829
AXYL OPERA M WO 4L 927 AS HF BK7449LED1.6496700827
AXYL OPERA M WO 4L 927 AS HF GY7449LED1.6496700828
AXYL OPERA M WO 4L 927 AS HF SS7449LED1.7296701140
AXYL OPERA M WO 4L 927 AS HF WH7449LED1.6496700826
AXYL OPERA M WO 4L 927 AS RD ANT7449LED1.6496701791
AXYL OPERA M WO 4L 927 AS RD BK7449LED1.6496701789
AXYL OPERA M WO 4L 927 AS RD GY7449LED1.6496701790
AXYL OPERA M WO 4L 927 AS RD SS7449LED1.7296701872
AXYL OPERA M WO 4L 927 AS RD WH7449LED1.6496701788
AXYL OPERA M WO 4L 930 AS HF ANT7488LED1.6496700837
AXYL OPERA M WO 4L 930 AS HF BK7488LED1.6496700835
AXYL OPERA M WO 4L 930 AS HF GY7488LED1.6496700836
AXYL OPERA M WO 4L 930 AS HF SS7488LED1.7496701142
AXYL OPERA M WO 4L 930 AS HF WH7488LED1.6496700834
AXYL OPERA M WO 4L 930 AS RD ANT7488LED1.6496701799
AXYL OPERA M WO 4L 930 AS RD BK7488LED1.6496701797
AXYL OPERA M WO 4L 930 AS RD GY7488LED1.6496701798
AXYL OPERA M WO 4L 930 AS RD SS7488LED1.7496701874
AXYL OPERA M WO 4L 930 AS RD WH7488LED1.6496701796
AXYL OPERA M WO 4L 940 AS HF ANT7498LED1.6496700833
AXYL OPERA M WO 4L 940 AS HF BK7498LED1.6496700831
AXYL OPERA M WO 4L 940 AS HF GY7498LED1.6496700832
AXYL OPERA M WO 4L 940 AS HF SS7498LED1.7296701141
AXYL OPERA M WO 4L 940 AS HF WH7498LED1.6496700830
AXYL OPERA M WO 4L 940 AS RD ANT7498LED1.6496701795
AXYL OPERA M WO 4L 940 AS RD BK7498LED1.6496701793
AXYL OPERA M WO 4L 940 AS RD GY7498LED1.6496701794
AXYL OPERA M WO 4L 940 AS RD SS7498LED1.7296701873
AXYL OPERA M WO 4L 940 AS RD WH7498LED1.6496701792

▼ Axyl Opera, medium size medium beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA M WO 1L 927 MB HF ANT9411LED1.4196700841
AXYL OPERA M WO 1L 927 MB HF BK9411LED1.4196700839
AXYL OPERA M WO 1L 927 MB HF GY9411LED1.4196700840
AXYL OPERA M WO 1L 927 MB HF SS9411LED1.4196701143
AXYL OPERA M WO 1L 927 MB HF WH9411LED1.4196700838
AXYL OPERA M WO 1L 927 MB RD ANT9411LED1.4196701803
AXYL OPERA M WO 1L 927 MB RD BK9411LED1.4196701801
AXYL OPERA M WO 1L 927 MB RD GY9411LED1.4196701802
AXYL OPERA M WO 1L 927 MB RD SS9411LED1.4196701875
AXYL OPERA M WO 1L 927 MB RD WH9411LED1.4196701800
AXYL OPERA M WO 1L 930 MB HF ANT9434LED1.4196700849
AXYL OPERA M WO 1L 930 MB HF BK9434LED1.4196700847
AXYL OPERA M WO 1L 930 MB HF GY9434LED1.4196700848
AXYL OPERA M WO 1L 930 MB HF SS9434LED1.4196701145
AXYL OPERA M WO 1L 930 MB HF WH9434LED1.4196700846
AXYL OPERA M WO 1L 930 MB RD ANT9434LED1.4196701811
AXYL OPERA M WO 1L 930 MB RD BK9434LED1.4196701809
AXYL OPERA M WO 1L 930 MB RD GY9434LED1.4196701810
AXYL OPERA M WO 1L 930 MB RD SS9434LED1.4196701877
AXYL OPERA M WO 1L 930 MB RD WH9434LED1.4196701808
AXYL OPERA M WO 1L 940 MB HF ANT9458LED1.4196700845
AXYL OPERA M WO 1L 940 MB HF BK9458LED1.4196700843
AXYL OPERA M WO 1L 940 MB HF GY9458LED1.4196700844
AXYL OPERA M WO 1L 940 MB HF SS9458LED1.4196701144
AXYL OPERA M WO 1L 940 MB HF WH9458LED1.4196700842
AXYL OPERA M WO 1L 940 MB RD ANT9458LED1.4196701807
AXYL OPERA M WO 1L 940 MB RD BK9458LED1.4196701805
AXYL OPERA M WO 1L 940 MB RD GY9458LED1.4196701806
AXYL OPERA M WO 1L 940 MB RD SS9458LED1.4196701876
AXYL OPERA M WO 1L 940 MB RD WH9458LED1.4196701804

▼ Axyl Opera, large size narrow beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA L WO 9L 927 NB HFX ANT171011LED4.0896700913
AXYL OPERA L WO 9L 927 NB HFX BK171011LED4.0896700911
AXYL OPERA L WO 9L 927 NB HFX GY171011LED4.0896700912
AXYL OPERA L WO 9L 927 NB HFX SS171011LED4.1896701162
AXYL OPERA L WO 9L 927 NB HFX WH171011LED4.0896700910
AXYL OPERA L WO 9L 930 NB HFX ANT171143LED4.0896700921
AXYL OPERA L WO 9L 930 NB HFX BK171143LED4.0896700919
AXYL OPERA L WO 9L 930 NB HFX GY171143LED4.0896700920
AXYL OPERA L WO 9L 930 NB HFX SS171143LED4.1896701164
AXYL OPERA L WO 9L 930 NB HFX WH171143LED4.0896700918
AXYL OPERA L WO 9L 940 NB HFX ANT171179LED4.0896700917
AXYL OPERA L WO 9L 940 NB HFX BK171179LED4.0896700915
AXYL OPERA L WO 9L 940 NB HFX GY171179LED4.0896700916
AXYL OPERA L WO 9L 940 NB HFX SS171179LED4.1896701163
AXYL OPERA L WO 9L 940 NB HFX WH171179LED4.0896700914

▼ Axyl Opera, large size wide beam (frosted)

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA L WO 24L 927 WB HFX ANT1057LED3.5496700865
AXYL OPERA L WO 24L 927 WB HFX BK1057LED3.5496700863
AXYL OPERA L WO 24L 927 WB HFX GY1057LED3.5496700864
AXYL OPERA L WO 24L 927 WB HFX SS1057LED3.6696701149
AXYL OPERA L WO 24L 927 WB HFX WH1057LED3.5496700862
AXYL OPERA L WO 24L 930 WB HFX ANT1092LED3.5496700873
AXYL OPERA L WO 24L 930 WB HFX BK1092LED3.5496700871
AXYL OPERA L WO 24L 930 WB HFX GY1092LED3.5496700872
AXYL OPERA L WO 24L 930 WB HFX SS1092LED3.6696701151
AXYL OPERA L WO 24L 930 WB HFX WH1092LED3.5496700870
AXYL OPERA L WO 24L 940 WB HFX ANT10101LED3.5496700869
AXYL OPERA L WO 24L 940 WB HFX BK10101LED3.5496700867
AXYL OPERA L WO 24L 940 WB HFX GY10101LED3.5496700868
AXYL OPERA L WO 24L 940 WB HFX SS10101LED3.6696701150
AXYL OPERA L WO 24L 940 WB HFX WH10101LED3.5496700866

▼ Axyl Opera, large size asymmetric beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA L WO 9L 927 AS HFX ANT171083LED4.0896700925
AXYL OPERA L WO 9L 927 AS HFX BK171083LED4.0896700923
AXYL OPERA L WO 9L 927 AS HFX GY171083LED4.0896700924
AXYL OPERA L WO 9L 927 AS HFX SS171083LED4.1896701165
AXYL OPERA L WO 9L 927 AS HFX WH171083LED4.0896700922
AXYL OPERA L WO 9L 930 AS HFX ANT171188LED4.0896700933
AXYL OPERA L WO 9L 930 AS HFX BK171188LED4.0896700931
AXYL OPERA L WO 9L 930 AS HFX GY171188LED4.0896700932
AXYL OPERA L WO 9L 930 AS HFX SS171188LED4.1896701167
AXYL OPERA L WO 9L 930 AS HFX WH171188LED4.0896700930
AXYL OPERA L WO 9L 940 AS HFX ANT171250LED4.0896700929
AXYL OPERA L WO 9L 940 AS HFX BK171250LED4.0896700927
AXYL OPERA L WO 9L 940 AS HFX GY171250LED4.0896700928
AXYL OPERA L WO 9L 940 AS HFX SS171250LED4.1896701166
AXYL OPERA L WO 9L 940 AS HFX WH171250LED4.0896700926

▼ Axyl Opera, large size medium beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA L WO 1L 927 MB HFX ANT15940LED3.4396700937
AXYL OPERA L WO 1L 927 MB HFX BK15940LED3.4396700935
AXYL OPERA L WO 1L 927 MB HFX GY15940LED3.4396700936
AXYL OPERA L WO 1L 927 MB HFX SS15940LED3.4396701168
AXYL OPERA L WO 1L 927 MB HFX WH15940LED3.4396700934
AXYL OPERA L WO 1L 930 MB HFX ANT15973LED3.4396700945
AXYL OPERA L WO 1L 930 MB HFX BK15973LED3.4396700943
AXYL OPERA L WO 1L 930 MB HFX GY15973LED3.4396700944
AXYL OPERA L WO 1L 930 MB HFX SS15973LED3.4396701170
AXYL OPERA L WO 1L 930 MB HFX WH15973LED3.4396700942
AXYL OPERA L WO 1L 940 MB HFX ANT151027LED3.4396700941
AXYL OPERA L WO 1L 940 MB HFX BK151027LED3.4396700939
AXYL OPERA L WO 1L 940 MB HFX GY151027LED3.4396700940
AXYL OPERA L WO 1L 940 MB HFX SS151027LED3.4396701169
AXYL OPERA L WO 1L 940 MB HFX WH151027LED3.4396700938

▼ Axyl Opera, extra-large size wide beam (frosted)

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA XL WO 30L 927 WB HFX BLK11263LED6.1796701099
AXYL OPERA XL WO 30L 927 WB HFX ANT11263LED6.1796701101
AXYL OPERA XL WO 30L 927 WB HFX GRY11263LED6.1796701100
AXYL OPERA XL WO 30L 927 WB HFX SS11263LED6.3096701059
AXYL OPERA XL WO 30L 927 WB HFX WH11263LED6.1796701098
AXYL OPERA XL WO 30L 930 WB HFX ANT11289LED6.1696701109
AXYL OPERA XL WO 30L 930 WB HFX BLK11289LED6.1696701107
AXYL OPERA XL WO 30L 930 WB HFX GRY11289LED6.1696701108
AXYL OPERA XL WO 30L 930 WB HFX SS11289LED6.2996701061
AXYL OPERA XL WO 30L 930 WB HFX WHI11289LED6.1696701106
AXYL OPERA XL WO 30L 940 WB HFX ANT11320LED6.1796701105
AXYL OPERA XL WO 30L 940 WB HFX BLK11320LED6.1796701103
AXYL OPERA XL WO 30L 940 WB HFX GRY11320LED6.1796701104
AXYL OPERA XL WO 30L 940 WB HFX SS11320LED6.3096701060
AXYL OPERA XL WO 30L 940 WB HFX WHI11320LED6.1796701102

▼ Axyl Opera, extra-large size narrow beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA XL WO 16L 927 NB HFX ANT332229LED7.3196701065
AXYL OPERA XL WO 16L 927 NB HFX BK332229LED7.3196701063
AXYL OPERA XL WO 16L 927 NB HFX GY332229LED7.3196701064
AXYL OPERA XL WO 16L 927 NB HFX WH332229LED7.3196701062
AXYL OPERA XL WO 16L 930 NB HFX ANT332427LED7.3196701073
AXYL OPERA XL WO 16L 930 NB HFX BK332427LED7.3196701071
AXYL OPERA XL WO 16L 930 NB HFX GY332427LED7.3196701072
AXYL OPERA XL WO 16L 930 NB HFX WH332427LED7.3196701070
AXYL OPERA XL WO 16L 940 NB HFX ANT332636LED7.3196701069
AXYL OPERA XL WO 16L 940 NB HFX BK332636LED7.3196701067
AXYL OPERA XL WO 16L 940 NB HFX GY332636LED7.3196701068
AXYL OPERA XL WO 16L 940 NB HFX WH332636LED7.3196701066
AXYL OPERA XL WO 1L 927 NB HFX SS332229LED7.4296701049
AXYL OPERA XL WO 1L 930 NB HFX SS332427LED7.4296701051
AXYL OPERA XL WO 1L 940 NB HFX SS332636LED7.4296701050

▼ Axyl Opera, extra-large size medium beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA XL WO 1L 927 MB HFX ANT332515LED6.1596701089
AXYL OPERA XL WO 1L 927 MB HFX BK332515LED6.1596701087
AXYL OPERA XL WO 1L 927 MB HFX GY332515LED6.1596701088
AXYL OPERA XL WO 1L 927 MB HFX SS332515LED6.1596701055
AXYL OPERA XL WO 1L 927 MB HFX WH332515LED6.1596701086
AXYL OPERA XL WO 1L 930 MB HFX ANT332602LED6.1596701097
AXYL OPERA XL WO 1L 930 MB HFX BK332602LED6.1596701095
AXYL OPERA XL WO 1L 930 MB HFX GY332602LED6.1596701096
AXYL OPERA XL WO 1L 930 MB HFX SS332602LED6.1596701057
AXYL OPERA XL WO 1L 930 MB HFX WH332602LED6.1596701094
AXYL OPERA XL WO 1L 940 MB HFX ANT332790LED6.1596701093
AXYL OPERA XL WO 1L 940 MB HFX BK332790LED6.1596701091
AXYL OPERA XL WO 1L 940 MB HFX GY332790LED6.1596701092
AXYL OPERA XL WO 1L 940 MB HFX SS332790LED6.1596701056
AXYL OPERA XL WO 1L 940 MB HFX WH332790LED6.1596701090

▼ Axyl Opera, extra-large size asymmetric beam

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA XL WO 16L 927 AS HFX ANT332377LED7.2196701077
AXYL OPERA XL WO 16L 927 AS HFX BK332377LED7.2196701075
AXYL OPERA XL WO 16L 927 AS HFX GY332377LED7.2196701076
AXYL OPERA XL WO 16L 927 AS HFX SS332377LED7.3296701052
AXYL OPERA XL WO 16L 927 AS HFX WH332377LED7.2196701074
AXYL OPERA XL WO 16L 930 AS HFX ANT332407LED7.2196701085
AXYL OPERA XL WO 16L 930 AS HFX BK332407LED7.2196701083
AXYL OPERA XL WO 16L 930 AS HFX GY332407LED7.2196701084
AXYL OPERA XL WO 16L 930 AS HFX SS332407LED7.3296701054
AXYL OPERA XL WO 16L 930 AS HFX WH332407LED7.2196701082
AXYL OPERA XL WO 16L 940 AS HFX ANT332672LED7.2196701081
AXYL OPERA XL WO 16L 940 AS HFX BK332672LED7.2196701079
AXYL OPERA XL WO 16L 940 AS HFX GY332672LED7.2196701080
AXYL OPERA XL WO 16L 940 AS HFX SS332672LED7.2996701053
AXYL OPERA XL WO 16L 940 AS HFX WH332672LED7.2196701078

▼ Axyl Opera, RGBW versions

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL OPERA L WO 3L RGBW WB PWM SS15468LED3.9996701171
AXYL OPERA XL WO 5L RGBW WB PWM SS23766LED8.1996701058
