Axyl Trim

  • Axyl Trim

Axyl Trim is a classic recessed wall luminaire available in two sizes ideal for wayfinding applications

  • Recessed wall luminaire available in four standard colours (grey, anthracite, black, white). And two sizes, small square and large rectangle
  • Mehrere Lichtverteilungsvarianten über unterschiedliche Abdeckungen möglich. Opal für diffuse Beleuchtung. Raster oder Reflektor für asymmetrische Lichtverteilung und eine nachthimmelfreundliche Anwendung
  • Erhältlich in 2700K, 3000K, 4000K und CRI90
  • Axyl Trim ist erhältlich in den Konnektivitätsvarianten Nicht-dimmbar oder DALI2 (Option mit externem Treiber)

Material/Ausfertigung

Die-cast aluminium housing.
Silicone gaskets.
Stainless steel A4 screws.
Double Powder paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Installation/Montage

Suitable for recessed mounting with recessed box to be ordered separately : 96700399 (S / Square) - 96700290 (L / Rectangle).
Fixing screws and washer delivered with product.
Maximum cable size :
-Axyl Trim S HF : 3 x 1mm² - 3 x 4mm²
-Axyl Trim S RD : 2 x 1mm² - 2 x 4mm²
-Axyl Trim L HF : 3 x 1mm² - 3 x 2,5mm²
-Axyl Trim L RD : 2 x 1mm² - 2 x 2,5mm²
Remote DALI-2 driver to be ordered separately.

Spezifikation

To specify state:
Recessed wall luminaire available in rectangular or square shapes and in four standard colours (grey, anthracite, black, white). Axyl Trim is installed using a flush-mounted box (not supplied), which must be ordered separately. Several light distributions are available and linked to a different type of face : performance, opal, louvre, visor, barn doors to meet different needs.
Available in 2700K, 3000K and 4000K with a CRI of 90 ideal for residential or public applications.
Non-dimmable driver integrated, possibility of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire.
Robustness: IP65 & IK08.
Recessed box: 96700399 (S / Square) - 96700290 (L / Rectangle).
As Thorn Axyl Trim

Neues Produkt
LumExpress Produkt
eControl Produkt

▼ Axyl Trim, performance facia

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL TRIM L PERF 6L927 A/S HF ANT12408LED1.4896700294
AXYL TRIM L PERF 6L927 A/S HF BK12408LED1.4896700292
AXYL TRIM L PERF 6L927 A/S HF GY12408LED1.4896700293
AXYL TRIM L PERF 6L927 A/S HF WH12408LED1.4896700291
AXYL TRIM L PERF 6L927 A/S RD ANT12408LED1.4896701359
AXYL TRIM L PERF 6L927 A/S RD BK12408LED1.4896701357
AXYL TRIM L PERF 6L927 A/S RD GY12408LED1.4896701358
AXYL TRIM L PERF 6L927 A/S RD WH12408LED1.4896701356
AXYL TRIM L PERF 6L930 A/S HF ANT12430LED1.3696700302
AXYL TRIM L PERF 6L930 A/S HF BK12430LED1.3696700300
AXYL TRIM L PERF 6L930 A/S HF GY12430LED1.3696700301
AXYL TRIM L PERF 6L930 A/S HF WH12430LED1.3696700299
AXYL TRIM L PERF 6L930 A/S RD ANT12430LED1.3696701367
AXYL TRIM L PERF 6L930 A/S RD BK12430LED1.3696701365
AXYL TRIM L PERF 6L930 A/S RD GY12430LED1.3696701366
AXYL TRIM L PERF 6L930 A/S RD WH12430LED1.3696701364
AXYL TRIM L PERF 6L940 A/S HF ANT12430LED1.3896700298
AXYL TRIM L PERF 6L940 A/S HF BK12430LED1.3896700296
AXYL TRIM L PERF 6L940 A/S HF GY12430LED1.3896700297
AXYL TRIM L PERF 6L940 A/S HF WH12430LED1.3896700295
AXYL TRIM L PERF 6L940 A/S RD ANT12430LED1.3896701363
AXYL TRIM L PERF 6L940 A/S RD BK12430LED1.3896701361
AXYL TRIM L PERF 6L940 A/S RD GY12430LED1.3896701362
AXYL TRIM L PERF 6L940 A/S RD WH12430LED1.3896701360

▼ Axyl Trim, opal facia

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL TRIM L OPAL 6L927 S/S HF ANT11455LED1.4896700306
AXYL TRIM L OPAL 6L927 S/S HF BK11455LED1.4896700304
AXYL TRIM L OPAL 6L927 S/S HF GY11455LED1.4896700305
AXYL TRIM L OPAL 6L927 S/S HF WH11455LED1.4896700303
AXYL TRIM L OPAL 6L927 S/S RD ANT11455LED1.4896701371
AXYL TRIM L OPAL 6L927 S/S RD BK11455LED1.4896701369
AXYL TRIM L OPAL 6L927 S/S RD GY11455LED1.4896701370
AXYL TRIM L OPAL 6L927 S/S RD WH11455LED1.4896701368
AXYL TRIM L OPAL 6L930 S/S HF ANT11479LED1.3696700314
AXYL TRIM L OPAL 6L930 S/S HF BK11479LED1.3696700312
AXYL TRIM L OPAL 6L930 S/S HF GY11479LED1.3696700313
AXYL TRIM L OPAL 6L930 S/S HF WH11479LED1.3696700311
AXYL TRIM L OPAL 6L930 S/S RD ANT11479LED1.3696701379
AXYL TRIM L OPAL 6L930 S/S RD BK11479LED1.3696701377
AXYL TRIM L OPAL 6L930 S/S RD GY11479LED1.3696701378
AXYL TRIM L OPAL 6L930 S/S RD WH11479LED1.3696701376
AXYL TRIM L OPAL 6L940 S/S HF ANT11479LED1.3896700310
AXYL TRIM L OPAL 6L940 S/S HF BK11479LED1.3896700308
AXYL TRIM L OPAL 6L940 S/S HF GY11479LED1.3896700309
AXYL TRIM L OPAL 6L940 S/S HF WH11479LED1.3896700307
AXYL TRIM L OPAL 6L940 S/S RD ANT11479LED1.3896701375
AXYL TRIM L OPAL 6L940 S/S RD BK11479LED1.3896701373
AXYL TRIM L OPAL 6L940 S/S RD GY11479LED1.3896701374
AXYL TRIM L OPAL 6L940 S/S RD WH11479LED1.3896701372
AXYL TRIM S OPAL 1L927 S/S HF ANT391LED0.6096700354
AXYL TRIM S OPAL 1L927 S/S HF BK391LED0.6096700352
AXYL TRIM S OPAL 1L927 S/S HF GY391LED0.6096700353
AXYL TRIM S OPAL 1L927 S/S HF WH391LED0.6096700351
AXYL TRIM S OPAL 1L927 S/S RD ANT391LED0.6096701419
AXYL TRIM S OPAL 1L927 S/S RD BK391LED0.6096701417
AXYL TRIM S OPAL 1L927 S/S RD GY391LED0.6096701418
AXYL TRIM S OPAL 1L927 S/S RD WH391LED0.6096701416
AXYL TRIM S OPAL 1L930 S/S HF ANT397LED0.6096700362
AXYL TRIM S OPAL 1L930 S/S HF BK397LED0.6096700360
AXYL TRIM S OPAL 1L930 S/S HF GY397LED0.6096700361
AXYL TRIM S OPAL 1L930 S/S HF WH397LED0.6096700359
AXYL TRIM S OPAL 1L930 S/S RD ANT397LED0.6096701427
AXYL TRIM S OPAL 1L930 S/S RD BK397LED0.6096701425
AXYL TRIM S OPAL 1L930 S/S RD GY397LED0.6096701426
AXYL TRIM S OPAL 1L930 S/S RD WH397LED0.6096701424
AXYL TRIM S OPAL 1L940 S/S HF ANT397LED0.6096700358
AXYL TRIM S OPAL 1L940 S/S HF BK397LED0.6096700356
AXYL TRIM S OPAL 1L940 S/S HF GY397LED0.6096700357
AXYL TRIM S OPAL 1L940 S/S HF WH397LED0.6096700355
AXYL TRIM S OPAL 1L940 S/S RD ANT397LED0.6096701423
AXYL TRIM S OPAL 1L940 S/S RD BK397LED0.6096701421
AXYL TRIM S OPAL 1L940 S/S RD GY397LED0.6096701422
AXYL TRIM S OPAL 1L940 S/S RD WH397LED0.6096701420

▼ Axyl Trim, grid facia

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL TRIM L GRID 6L927 A/S HF ANT11120LED1.4896700318
AXYL TRIM L GRID 6L927 A/S HF BK11120LED1.4896700316
AXYL TRIM L GRID 6L927 A/S HF GY11120LED1.4896700317
AXYL TRIM L GRID 6L927 A/S HF WH11120LED1.4896700315
AXYL TRIM L GRID 6L927 A/S RD ANT11120LED1.4896701383
AXYL TRIM L GRID 6L927 A/S RD BK11120LED1.4896701381
AXYL TRIM L GRID 6L927 A/S RD GY11120LED1.4896701382
AXYL TRIM L GRID 6L927 A/S RD WH11120LED1.4896701380
AXYL TRIM L GRID 6L930 A/S HF ANT11128LED1.3696700326
AXYL TRIM L GRID 6L930 A/S HF BK11128LED1.3696700324
AXYL TRIM L GRID 6L930 A/S HF GY11128LED1.3696700325
AXYL TRIM L GRID 6L930 A/S HF WH11128LED1.3696700323
AXYL TRIM L GRID 6L930 A/S RD ANT11128LED1.3696701391
AXYL TRIM L GRID 6L930 A/S RD BK11128LED1.3696701389
AXYL TRIM L GRID 6L930 A/S RD GY11128LED1.3696701390
AXYL TRIM L GRID 6L930 A/S RD WH11128LED1.3696701388
AXYL TRIM L GRID 6L940 A/S HF ANT11128LED1.3896700322
AXYL TRIM L GRID 6L940 A/S HF BK11128LED1.3896700320
AXYL TRIM L GRID 6L940 A/S HF GY11128LED1.3896700321
AXYL TRIM L GRID 6L940 A/S HF WH11128LED1.3896700319
AXYL TRIM L GRID 6L940 A/S RD ANT11128LED1.3896701387
AXYL TRIM L GRID 6L940 A/S RD BK11128LED1.3896701385
AXYL TRIM L GRID 6L940 A/S RD GY11128LED1.3896701386
AXYL TRIM L GRID 6L940 A/S RD WH11128LED1.3896701384
AXYL TRIM S GRID 1L927 A/S HF ANT321LED0.6096700366
AXYL TRIM S GRID 1L927 A/S HF BK321LED0.6096700364
AXYL TRIM S GRID 1L927 A/S HF GY321LED0.6096700365
AXYL TRIM S GRID 1L927 A/S HF WH321LED0.6096700363
AXYL TRIM S GRID 1L927 A/S RD ANT321LED0.6096701431
AXYL TRIM S GRID 1L927 A/S RD BK321LED0.6096701429
AXYL TRIM S GRID 1L927 A/S RD GY321LED0.6096701430
AXYL TRIM S GRID 1L927 A/S RD WH321LED0.6096701428
AXYL TRIM S GRID 1L930 A/S HF ANT322LED0.6096700374
AXYL TRIM S GRID 1L930 A/S HF BK322LED0.6096700372
AXYL TRIM S GRID 1L930 A/S HF GY322LED0.6096700373
AXYL TRIM S GRID 1L930 A/S HF WH322LED0.6096700371
AXYL TRIM S GRID 1L930 A/S RD ANT322LED0.6096701439
AXYL TRIM S GRID 1L930 A/S RD BK322LED0.6096701437
AXYL TRIM S GRID 1L930 A/S RD GY322LED0.6096701438
AXYL TRIM S GRID 1L930 A/S RD WH322LED0.6096701436
AXYL TRIM S GRID 1L940 A/S HF ANT323LED0.6096700370
AXYL TRIM S GRID 1L940 A/S HF BK323LED0.6096700368
AXYL TRIM S GRID 1L940 A/S HF GY323LED0.6096700369
AXYL TRIM S GRID 1L940 A/S HF WH323LED0.6096700367
AXYL TRIM S GRID 1L940 A/S RD ANT323LED0.6096701435
AXYL TRIM S GRID 1L940 A/S RD BK323LED0.6096701433
AXYL TRIM S GRID 1L940 A/S RD GY323LED0.6096701434
AXYL TRIM S GRID 1L940 A/S RD WH323LED0.6096701432

▼ Axyl Trim, visor facia

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL TRIM L VISO 6L927 A/S HF ANT11272LED1.4896700330
AXYL TRIM L VISO 6L927 A/S HF BK11272LED1.4896700328
AXYL TRIM L VISO 6L927 A/S HF GY11272LED1.4896700329
AXYL TRIM L VISO 6L927 A/S HF WH11272LED1.4896700327
AXYL TRIM L VISO 6L927 A/S RD ANT11272LED1.4896701395
AXYL TRIM L VISO 6L927 A/S RD BK11272LED1.4896701393
AXYL TRIM L VISO 6L927 A/S RD GY11272LED1.4896701394
AXYL TRIM L VISO 6L927 A/S RD WH11272LED1.4896701392
AXYL TRIM L VISO 6L930 A/S HF ANT11289LED1.3696700338
AXYL TRIM L VISO 6L930 A/S HF BK11289LED1.3696700336
AXYL TRIM L VISO 6L930 A/S HF GY11289LED1.3696700337
AXYL TRIM L VISO 6L930 A/S HF WH11289LED1.3696700335
AXYL TRIM L VISO 6L930 A/S RD ANT11289LED1.3696701403
AXYL TRIM L VISO 6L930 A/S RD BK11289LED1.3696701401
AXYL TRIM L VISO 6L930 A/S RD GY11289LED1.3696701402
AXYL TRIM L VISO 6L930 A/S RD WH11289LED1.3696701400
AXYL TRIM L VISO 6L940 A/S HF ANT11289LED1.3896700334
AXYL TRIM L VISO 6L940 A/S HF BK11289LED1.3896700332
AXYL TRIM L VISO 6L940 A/S HF GY11289LED1.3896700333
AXYL TRIM L VISO 6L940 A/S HF WH11289LED1.3896700331
AXYL TRIM L VISO 6L940 A/S RD ANT11289LED1.3896701399
AXYL TRIM L VISO 6L940 A/S RD BK11289LED1.3896701397
AXYL TRIM L VISO 6L940 A/S RD GY11289LED1.3896701398
AXYL TRIM L VISO 6L940 A/S RD WH11289LED1.3896701396
AXYL TRIM S VISO 1L927 A/S HF ANT346LED0.6096700378
AXYL TRIM S VISO 1L927 A/S HF BK346LED0.6096700376
AXYL TRIM S VISO 1L927 A/S HF GY346LED0.6096700377
AXYL TRIM S VISO 1L927 A/S HF WH346LED0.6096700375
AXYL TRIM S VISO 1L927 A/S RD ANT346LED0.6096701443
AXYL TRIM S VISO 1L927 A/S RD BK346LED0.6096701441
AXYL TRIM S VISO 1L927 A/S RD GY346LED0.6096701442
AXYL TRIM S VISO 1L927 A/S RD WH346LED0.6096701440
AXYL TRIM S VISO 1L930 A/S HF ANT349LED0.6096700386
AXYL TRIM S VISO 1L930 A/S HF BK349LED0.6096700384
AXYL TRIM S VISO 1L930 A/S HF GY349LED0.6096700385
AXYL TRIM S VISO 1L930 A/S HF WH349LED0.6096700383
AXYL TRIM S VISO 1L930 A/S RD ANT349LED0.6096701451
AXYL TRIM S VISO 1L930 A/S RD BK349LED0.6096701449
AXYL TRIM S VISO 1L930 A/S RD GY349LED0.6096701450
AXYL TRIM S VISO 1L930 A/S RD WH349LED0.6096701448
AXYL TRIM S VISO 1L940 A/S HF ANT352LED0.6096700382
AXYL TRIM S VISO 1L940 A/S HF BK352LED0.6096700380
AXYL TRIM S VISO 1L940 A/S HF GY352LED0.6096700381
AXYL TRIM S VISO 1L940 A/S HF WH352LED0.6096700379
AXYL TRIM S VISO 1L940 A/S RD ANT352LED0.6096701447
AXYL TRIM S VISO 1L940 A/S RD BK352LED0.6096701445
AXYL TRIM S VISO 1L940 A/S RD GY352LED0.6096701446
AXYL TRIM S VISO 1L940 A/S RD WH352LED0.6096701444

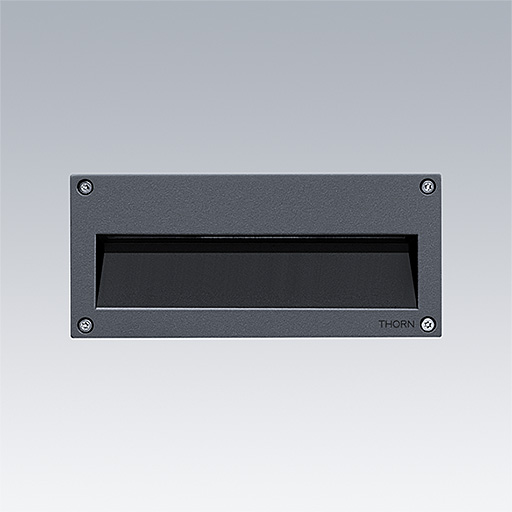

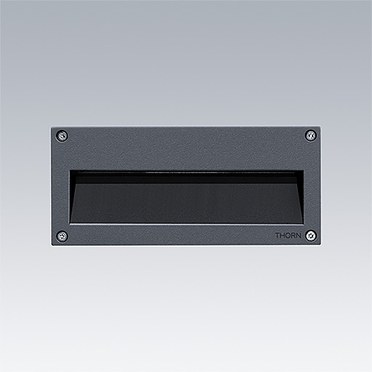

▼ Axyl Trim, baffle facia

BeschreibungSystemleistung (W)Lichtstrom (lm)   TypGewicht (Kg)Artikelnummer
AXYL TRIM L BAFF 6L927 A/S HF ANT11154LED1.4896700342
AXYL TRIM L BAFF 6L927 A/S HF BK11154LED1.4896700340
AXYL TRIM L BAFF 6L927 A/S HF GY11154LED1.4896700341
AXYL TRIM L BAFF 6L927 A/S HF WH11154LED1.4896700339
AXYL TRIM L BAFF 6L927 A/S RD ANT11154LED1.4896701407
AXYL TRIM L BAFF 6L927 A/S RD BK11154LED1.4896701405
AXYL TRIM L BAFF 6L927 A/S RD GY11154LED1.4896701406
AXYL TRIM L BAFF 6L927 A/S RD WH11154LED1.4896701404
AXYL TRIM L BAFF 6L930 A/S HF ANT11164LED1.3696700350
AXYL TRIM L BAFF 6L930 A/S HF BK11164LED1.3696700348
AXYL TRIM L BAFF 6L930 A/S HF GY11164LED1.3696700349
AXYL TRIM L BAFF 6L930 A/S HF WH11164LED1.3696700347
AXYL TRIM L BAFF 6L930 A/S RD ANT11164LED1.3696701415
AXYL TRIM L BAFF 6L930 A/S RD BK11164LED1.3696701413
AXYL TRIM L BAFF 6L930 A/S RD GY11164LED1.3696701414
AXYL TRIM L BAFF 6L930 A/S RD WH11164LED1.3696701412
AXYL TRIM L BAFF 6L940 A/S HF ANT11163LED1.3896700346
AXYL TRIM L BAFF 6L940 A/S HF BK11163LED1.3896700344
AXYL TRIM L BAFF 6L940 A/S HF GY11163LED1.3896700345
AXYL TRIM L BAFF 6L940 A/S HF WH11163LED1.3896700343
AXYL TRIM L BAFF 6L940 A/S RD ANT11163LED1.3896701411
AXYL TRIM L BAFF 6L940 A/S RD BK11163LED1.3896701409
AXYL TRIM L BAFF 6L940 A/S RD GY11163LED1.3896701410
AXYL TRIM L BAFF 6L940 A/S RD WH11163LED1.3896701408
AXYL TRIM S BAFF 1L927 A/S HF ANT335LED0.6096700390
AXYL TRIM S BAFF 1L927 A/S HF BK335LED0.6096700388
AXYL TRIM S BAFF 1L927 A/S HF GY335LED0.6096700389
AXYL TRIM S BAFF 1L927 A/S HF WH335LED0.6096700387
AXYL TRIM S BAFF 1L927 A/S RD ANT335LED0.6096701455
AXYL TRIM S BAFF 1L927 A/S RD BK335LED0.6096701453
AXYL TRIM S BAFF 1L927 A/S RD GY335LED0.6096701454
AXYL TRIM S BAFF 1L927 A/S RD WH335LED0.6096701452
AXYL TRIM S BAFF 1L930 A/S HF ANT337LED0.6096700398
AXYL TRIM S BAFF 1L930 A/S HF BK337LED0.6096700396
AXYL TRIM S BAFF 1L930 A/S HF GY337LED0.6096700397
AXYL TRIM S BAFF 1L930 A/S HF WH337LED0.6096700395
AXYL TRIM S BAFF 1L930 A/S RD ANT337LED0.6096701463
AXYL TRIM S BAFF 1L930 A/S RD BK337LED0.6096701461
AXYL TRIM S BAFF 1L930 A/S RD GY337LED0.6096701462
AXYL TRIM S BAFF 1L930 A/S RD WH337LED0.6096701460
AXYL TRIM S BAFF 1L940 A/S HF ANT337LED0.6096700394
AXYL TRIM S BAFF 1L940 A/S HF BK337LED0.6096700392
AXYL TRIM S BAFF 1L940 A/S HF GY337LED0.6096700393
AXYL TRIM S BAFF 1L940 A/S HF WH337LED0.6096700391
AXYL TRIM S BAFF 1L940 A/S RD ANT337LED0.6096701459
AXYL TRIM S BAFF 1L940 A/S RD BK337LED0.6096701457
AXYL TRIM S BAFF 1L940 A/S RD GY337LED0.6096701458
AXYL TRIM S BAFF 1L940 A/S RD WH337LED0.6096701456

▼ Axyl Trim, recessed box

Beschreibung   Gewicht (Kg)Artikelnummer
AXYL TRIM RBOX L1.1596700290
AXYL TRIM RBOX S0.3296700399
