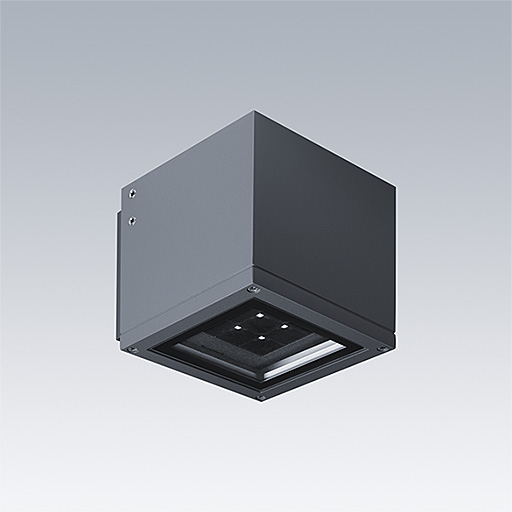

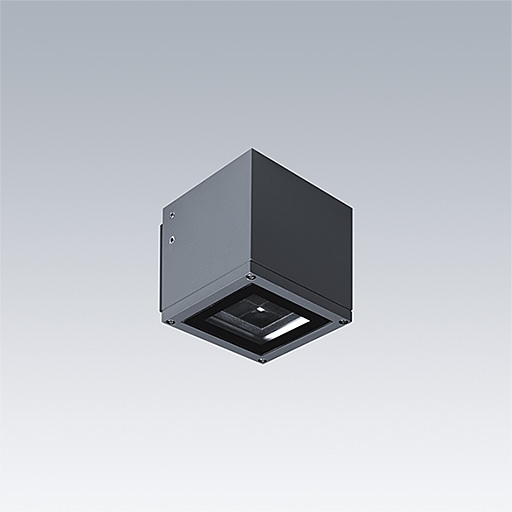

Axyl Echo

Installation et montage

Pour un montage au mur, avec 2 points de fixation pour un positionnement précis.
Connexion rapide sur la base de montage.
Ancrages, bagues d'étanchéité et vis fournis.

Taille de câble :
Petit HF : 3 x 1 mm² - 3 x 1,5 mm²
Petit RD : 2 x 1 mm² - 2 x 1,5 mm²
Moyen : 5 x 1,5 mm²

Le convertisseur à distance DALI-2 doit être commandé séparément.

Prescription

To specify state:
A square compact wall light available in two sizes (small and medium) and four standard colours (grey, anthracite, black and white). Axyl Echo is also available as a ceiling light to give a visual identity to the entire project. The (adjustable) LED optics provides glare control and better light control while offering different light distributions. Available in 2700K, 3000K and 4000K with a CRI of 90, ideal for residential applications and building entrances.
Integrated non-dimmable driver for small versions, with the option of integrating DALI2 dimming via a remote driver to be controlled separately with an RD luminaire. Integrated DALI2 driver on medium versions.
Robustness: IP65 & IK06.
As Thorn Axyl Echo Wall
